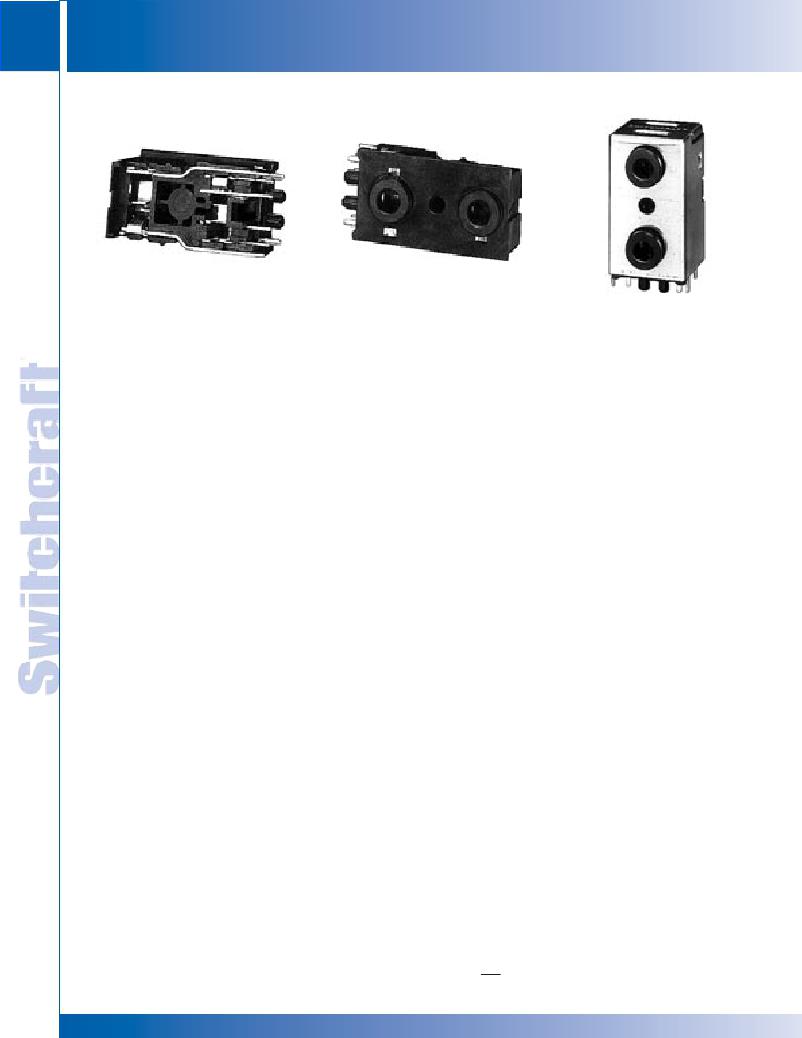

3.5MM DUAL STEREO JACK
UNSHIELDED - 35RAPC7J
SHIELDED - 35RAPC7JS
FEATURES
? 3-conductor, miniature phone jack mates with 3.5 mm
finger plugs.
? Saves board space...two jacks in a single vertical
mount footprint.
? Ideally suited for infra-red and convection oven
soldering 235°C (455°F).
? Board retention pins accommodate PC board thickness
range of .050" to .080".
? Single-screw panel mounting hole is standard.
? EMI-RFI shield, optional.
? Housing UL 94V-0 rated against flammability.
APPLICATIONS
? Multi-media workstations
? Headphones/microphone sets
? Interactive TV
? Audio
? Telecommunications
? Medical
? Computer
? Instrumentation
MATERIALS
Housing: Thermoplastic.
Tip and Ring Springs: Silver-plated copper alloy.
Shunt Terminals: Silver-plated copper alloy.
Sleeve Terminals: Silver-plated copper alloy.
Shield: Pre-tinned copper alloy.
PERFORMANCE SPECIFICATIONS
Insertion/Extraction Forces, initial: 0.8 to 6 pounds.
Dielectric Withstanding Voltage: 500 VAC.
Insulation Resistance, initial: 100 Megaohms, min.
Contact Resistance: Between plug and jack:
50 milliohms, maximum Between springs and shunts:
30 milliohms, maximum.
Life: 5000 cycles, minimum.
ORDERING INFORMATION
Part Number:
Shielded - 35RAPC7JS
Unshielded - 35RAPC7J
1. Order by part number.
2. Contact Switchcraft for special order information.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
